Guhring

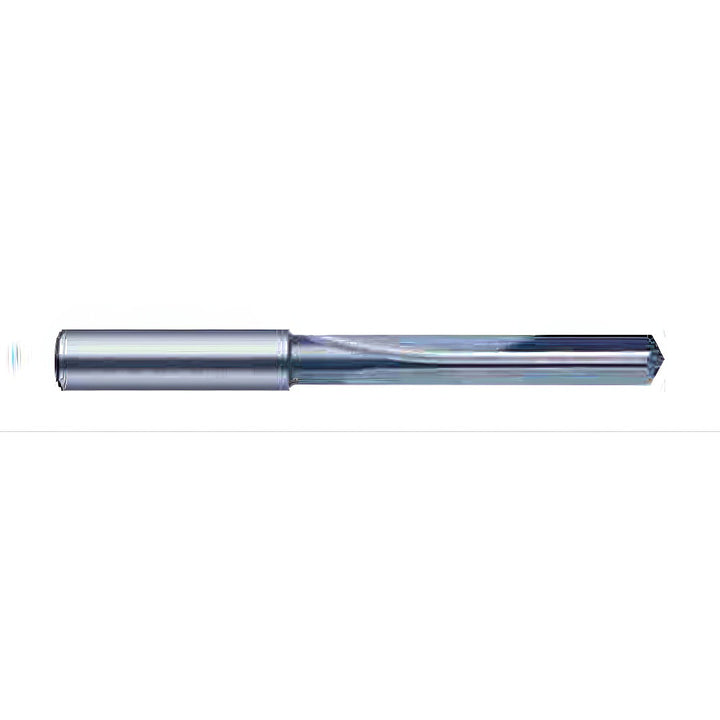

0.5118" Carbide Drill Bit, 120° point - Guhring 9007680130000
MFR# 9007680130000Series 768
$419.09List $537.51
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
Description
The Guhring 9007680130000 is a 0.5118" Carbide drill bit, 120° point. Suited for aluminum. Series 768.
Specifications
Coolant hole shapeRound
Coolant throughYes
Cutting directionRight Hand
Drill bit diameter tolerance+0.007 to +0.025 mm
Drill bit size0.5118
Drill bit typeStraight-Flute
Drill point angle120
Flute by diameter ratio4xD
Flute length (mm)74.00
Material gradeSubmicron
Maximum drilling depth2.1460
Number of flutes2
Overall length (mm)124.00
Point typeStandard
Primary workpiece materialAluminum
Secondary workpiece materialAluminum; Aluminum Alloy; Cast Iron
Shank diameter (mm)14.00
Shank length (mm)45.00
Specification numberDIN 6535HA
Tool materialCarbide
Tool performanceHigh Performance
Web thinningWeb-Thinned
