Guhring

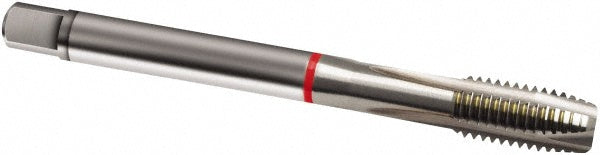

M5x0.5 Metric Fine High-Speed Steel-E Spiral Point Tap - Guhring 9008280050030
MFR# 9008280050030Series 828
$33.54List $43.02
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
Description
The Guhring 9008280050030 is a Metric Fine High-Speed Steel-E Spiral Point tap. 3 flutes.
Specifications
ApplicationThrough-Hole Threading
ChamferPlug
Class of fit6H
Coolant throughNo
Interrupted threadNo
MaterialHigh-Speed Steel-E
Material applicationSteel
Number of flutes3
Overall length (mm)70
OversizeNo
Shank diameter (mm)3.50
Square size (mm)2.70
StyleSpiral Point
Threads per inch50.8
Thread directionRight Hand
Thread length (mm)10.00
Thread limitD3/D4
Thread pitch (mm)0.5
Thread size (mm)M5x0.5
Thread standardMetric Fine
