Guhring

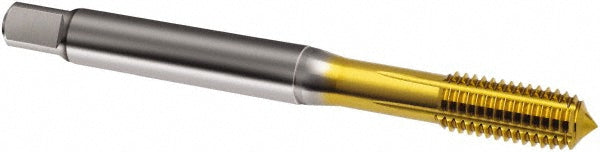

M8x1.25 Metric High-Speed Steel-E Tap, TiN - Guhring 9009190080000
MFR# 9009190080000Series 919
$51.30List $65.79
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
CoatingTiN
Description
The Guhring 9009190080000 is a Metric High-Speed Steel-E tap with a TiN finish.
Specifications
ApplicationBlind Hole Threading; Through-Hole Threading
ChamferModified Bottoming
Chamfered threads2-3P
Class of fit6HX
Coating finishTiN
Coolant throughNo
Flute by diameter ratio3xD
MaterialHigh-Speed Steel-E
Material applicationSteel; Stainless Steel; Non-Ferrous Metal; Superalloy
Material application codeP; M; N; S
Oil grooves5
Overall length3.5433
Shank diameter0.3150
Square size0.2441
Tapping depth1.3780
Thread directionRight Hand
Thread length0.6693
Thread limitD9; D10
Thread size (mm)M8x1.25
Thread standardMetric
