Guhring

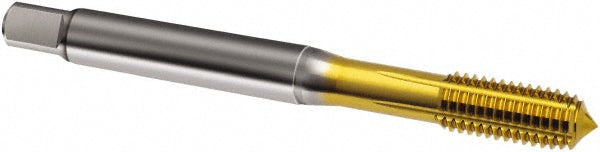

M10x1.5 Metric High-Speed Steel-E Tap, TiN - Guhring 9009190100000
MFR# 9009190100000Series 919
$60.53List $77.64
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
CoatingTiN
Description
The Guhring 9009190100000 is a Metric High-Speed Steel-E tap with a TiN finish.
Specifications
ApplicationBlind Hole Threading; Through-Hole Threading
ChamferModified Bottoming
Chamfered threads2-3P
Class of fit6HX
Coating finishTiN
Coolant throughNo
Flute by diameter ratio3xD
MaterialHigh-Speed Steel-E
Material applicationSteel; Stainless Steel; Non-Ferrous Metal; Superalloy
Material application codeP; M; N; S
Oil grooves5
Overall length3.9370
Shank diameter0.3937
Square size0.3150
Tapping depth1.5354
Thread directionRight Hand
Thread length0.7874
Thread limitD10; D11
Thread size (mm)M10x1.5
Thread standardMetric
