Guhring
0.0551" Cobalt Drill Bit, Bronze Oxide, 135° point - Guhring 9010180014000
MFR# 9010180014000
$5.42List $6.96
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
CoatingBronze Oxide
Description

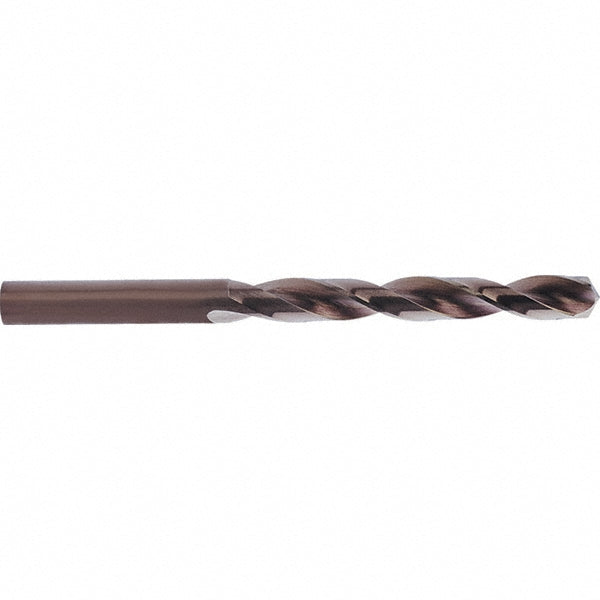

The Guhring 9010180014000 is a 0.0551" Cobalt drill bit with a Bronze Oxide finish, 135° point.
Specifications
Coating finishBronze Oxide
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter toleranceh8
Drill bit gradeGeneral Purpose
Drill bit materialCobalt
Drill bit size0.0551
Drill bit size range0.0500 - 0.1000
Drill point angle degrees135
Drill point length (mm)18.00
Flute by diameter ratio5xD
Flute length (mm)18.00
Flute typeParabolic
Number of flutes2
Overall length (mm)40.00
Point typeSplit
Shank diameter (mm)1.40
Shank length (mm)22.00
Shank typeStraight-Cylindrical
Specification designationDIN; NAS
Web thinningWeb-Thinned
