Guhring

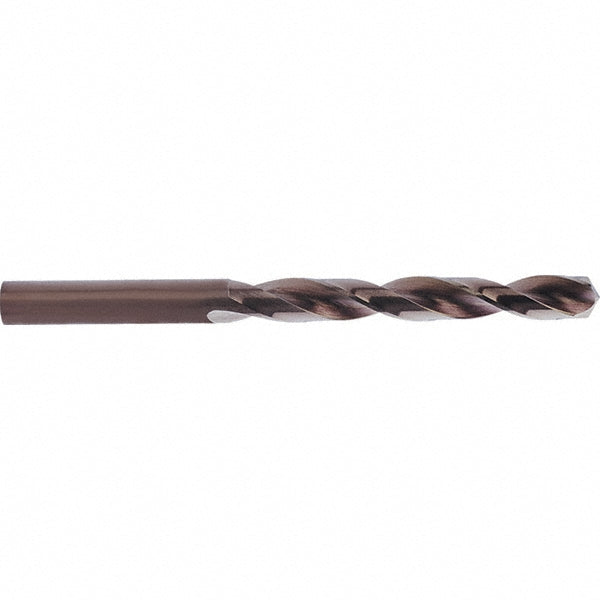

1/8" Cobalt Drill Bit, Bronze Oxide, 135° point - Guhring 9010180031700
MFR# 9010180031700Series 1018
$5.42List $6.96
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Drill size1/8
Flutes2
CoatingBronze Oxide
Description
The Guhring 9010180031700 is a 1/8" Cobalt drill bit with a Bronze Oxide finish, 135° point. Suited for aluminum, titanium alloy. Series 1018.
Specifications
Coating finishBronze Oxide
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter toleranceh8
Drill bit finish coatingBronze Oxide
Drill bit gradeGeneral Purpose
Drill bit materialCobalt
Drill bit size in1/8
Drill bit size range0.1000 - 0.1500
Drill point angle degrees135
Drill point length (mm)36.00
Flute by diameter ratio5xD
Flute length (mm)36.00
Flute typeParabolic
Maximum drilling depth1.2300
Number of flutes2
Overall length (mm)65.00
Point typeSplit
Primary workpiece materialAluminum; Titanium Alloy
Shank diameter (mm)3.17
Shank length (mm)29.00
Shank typeStraight-Cylindrical
Specification designationDIN; NAS
StandardsDIN 338
Web thinningWeb-Thinned
