Guhring

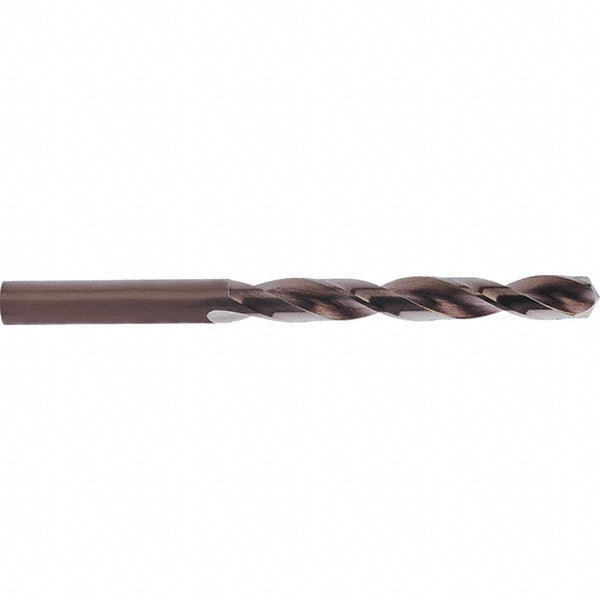

1/4" Cobalt Drill Bit, Oxide, 135° point - Guhring 9010180063500
MFR# 9010180063500Series 1018
$11.63List $14.91
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Drill size1/4
Flutes2
Description
The Guhring 9010180063500 is a 1/4" Cobalt drill bit with a Oxide finish, 135° point. Suited for aluminum, titanium alloy. Series 1018.
Specifications
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter toleranceh8
Drill bit finish coatingOxide
Drill bit materialCobalt
Drill bit size in1/4
Drill point angle degrees135
Drill point length (mm)63.00
Flute by diameter ratio5xD
Flute length (mm)63.00
Flute typeParabolic
Maximum drilling depth2.1060
Number of flutes2
Overall length (mm)101.00
Point typeSplit
Primary workpiece materialAluminum; Titanium Alloy
Shank diameter (mm)6.35
Shank length (mm)38.00
Shank typeStraight-Cylindrical
StandardsDIN 338
Web thinningWeb-Thinned
