Guhring

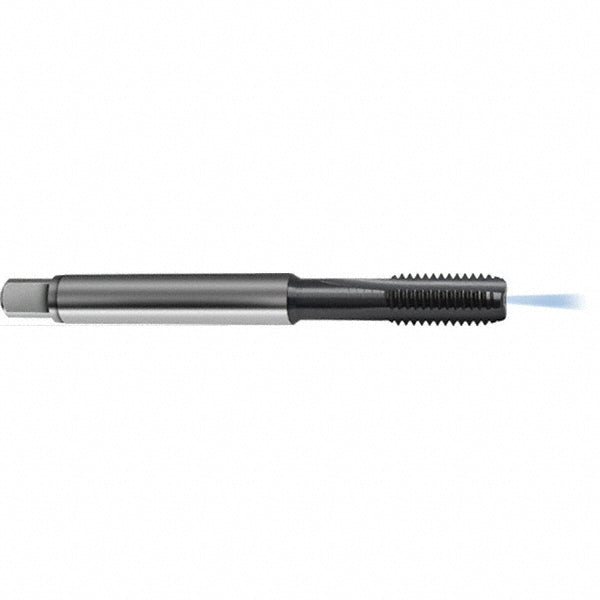

M8x1.25 Metric High-Speed Steel Standard Tap, TiCN - Guhring 9010910080000
MFR# 9010910080000Series 1091
$69.38List $88.99
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
CoatingTiCN
Description
The Guhring 9010910080000 is a Metric High-Speed Steel Standard tap with a TiCN finish. 3 flutes.
Specifications
ApplicationBlind Hole Threading
ChamferBottoming
Class of fit6HX
Coating finishTiCN
Coolant throughYes
MaterialHigh-Speed Steel
Material applicationAluminum; Cast Iron; Hardened Steel; Steel
Neck length35.00
Number of flutes3
Overall length (mm)90.00
Shank diameter (mm)8.00
Shank length (mm)55.00
Square size (mm)6.20
Tapping depth (mm)35.00
Tap typeStandard
Thread directionRight Hand
Thread limitD5; D6
Thread pitch (mm)1.25
Thread size (mm)M8x1.25
Thread standardMetric
