Guhring

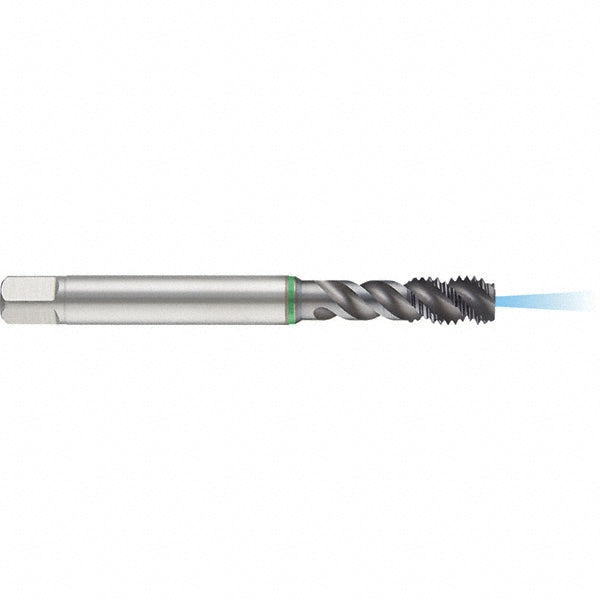

M5x0.8 Metric High-Speed Steel Tap, TiCN - Guhring 9011520050000
MFR# 9011520050000Series 1152
$49.40List $63.36
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
CoatingTiCN
Description
The Guhring 9011520050000 is a Metric High-Speed Steel tap with a TiCN finish. 3 flutes.
Specifications
ApplicationBlind Hole Threading
ChamferModified Bottoming
Class of fit6H
Coating finishTiCN
Coolant throughYes
Flute directionRight Hand
Flute styleSpiral
Helix angle50
MaterialHigh-Speed Steel
Material applicationAlloy Steel; Carbon Steel
Neck length (mm)25.00
Number of flutes3
Overall length (mm)70.00
OversizeNo
Shank diameter (mm)6.00
Shank length (mm)45.00
Square size (mm)4.90
Tapping depth (mm)25.00
Thread directionRight Hand
Thread limitD3; D4
Thread pitch (mm)0.80
Thread size (mm)M5x0.8
Thread standardMetric
