Guhring

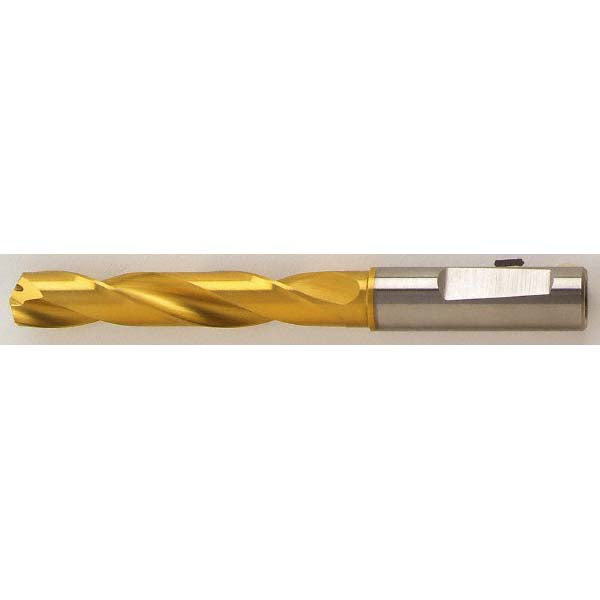

0.4567" Solid Carbide Drill Bit, TiN, 140° point - Guhring 9011830116000
MFR# 9011830116000
$382.79List $490.94
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
CoatingTiN
Description
The Guhring 9011830116000 is a 0.4567" Solid Carbide drill bit with a TiN finish, 140° point.
Specifications
Coating finishTiN
Coolant throughYes
Cutting directionRight Hand
Drill bit diameter tolerance0.007 to 0.025 mm
Drill bit finish coatingTitanium Nitride
Drill bit materialSolid Carbide
Drill bit size0.4567
Drill bit size range0.4000 - 0.5000
Drill point angle degrees140
Flute by diameter ratio5xD
Flute length (mm)71.00
Flute typeSpiral
Material gradeSubmicron
Overall length (mm)118.00
Point typeSU
Shank diameter0.4724
Shank length1.8504
Shank typeWhistle Notch
Specification designationDIN
Specification numberDIN 6537L
Spiral typeRegular
Web configurationTapered
Web thinningWeb-Thinned
