Guhring

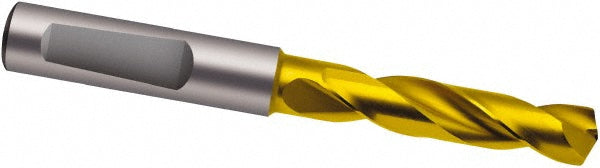

5/8" Solid Carbide Screw Machine Drill Bit, Coated, 140° point - Guhring 9011840158700
MFR# 9011840158700Series 1184
$399.04List $511.78
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Drill size5/8
Flutes2
CoatingCoated
Description
The Guhring 9011840158700 is a 5/8" Solid Carbide Screw Machine drill bit with a Coated finish, 140° point. Suited for cast iron, steel. Series 1184.
Specifications
Coating finishCoated
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerancem7
Drill bit gradeHigh Performance
Drill bit size in5/8
Drill bit size range0.6000+
Drill length typeScrew Machine
Drill point angle140
Flute by diameter ratio3xD
Flute length (mm)65.00
Flute typeSpiral
Material gradeK40
Maximum drilling depth1.6220
Number of flutes2
Overall length (mm)115.00
Point typeSU
Primary workpiece materialCast Iron; Steel
Shank diameter (mm)16.00
Shank typeWhistle Notch
Specification designationDIN
Spiral typeRegular
StandardsDIN 6537 K
Tool materialSolid Carbide
Tool performanceHigh Performance
Web thinningWeb-Thinned
