Guhring

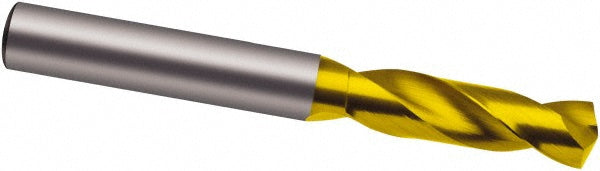

19/64" Solid Carbide Screw Machine Drill Bit, Coated, 140° point - Guhring 9017020075400
MFR# 9017020075400Series 1702
$139.92List $179.45
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Drill size19/64
Flutes2
CoatingCoated
Description
The Guhring 9017020075400 is a 19/64" Solid Carbide Screw Machine drill bit with a Coated finish, 140° point. Suited for stainless steel. Series 1702.
Specifications
Coating finishCoated
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerancem7
Drill bit gradeHigh Performance
Drill bit size in19/64
Drill bit size range0.2500 to 0.3000
Drill length typeScrew Machine
Drill point angle140
Flute by diameter ratio3xD
Flute length (mm)37.00
Flute typeSpiral
Material gradeK40
Maximum drilling depth1.0110
Number of flutes2
Overall length (mm)79.00
Point typeSU
Primary workpiece materialStainless Steel
Shank diameter (mm)7.54
Shank typeStraight-Cylindrical
Specification designationDIN
Spiral typeRegular
StandardsDIN 6539
Tool materialSolid Carbide
Tool performanceHigh Performance
Web thinningWeb-Thinned
