Guhring

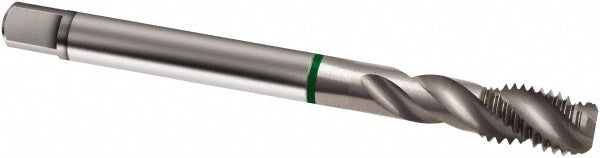

M5 x 0.50 Metric Fine Cobalt Tap - Guhring 9024240050030
MFR# 9024240050030Series 2424
$29.50List $37.84
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
Description
The Guhring 9024240050030 is a Metric Fine Cobalt tap. 3 flutes.
Specifications
ApplicationBlind Hole Threading
ChamferModified Bottoming
Class of fit6H
Coolant throughNo
Flute directionRight Hand
Flute styleFast
Helix angle40
MaterialCobalt
Material applicationAlloyed & Unalloyed Steel
Number of flutes3
Overall length (mm)70.00
OversizeNo
Shank diameter (mm)3.50
Square size (mm)2.70
Thread directionRight Hand
Thread limitD3; D4
Thread pitch (mm)0.50
Thread size (mm)M5 x 0.50
Thread standardMetric Fine
