Guhring

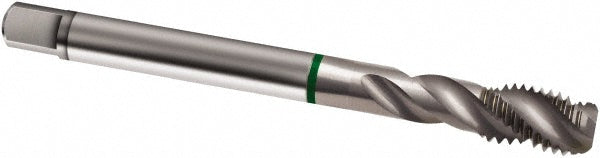

M10 x 1.00 Metric Fine Cobalt Tap - Guhring 9024240100050
MFR# 9024240100050Series 2424
$31.85List $40.86
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
Description
The Guhring 9024240100050 is a Metric Fine Cobalt tap. 3 flutes.
Specifications
ApplicationBlind Hole Threading
ChamferModified Bottoming
Class of fit6H
Coolant throughNo
Flute directionRight Hand
Flute styleFast
Helix angle40
MaterialCobalt
Material applicationAlloyed & Unalloyed Steel
Number of flutes3
Overall length (mm)90.00
OversizeNo
Shank diameter (mm)7.00
Square size (mm)5.50
Thread directionRight Hand
Thread limitD4; D5
Thread pitch (mm)1.00
Thread size (mm)M10 x 1.00
Thread standardMetric Fine
