Guhring

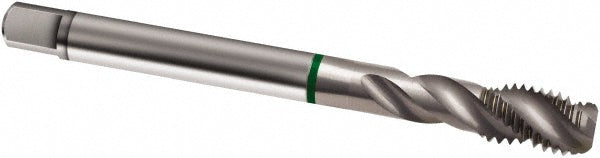

M12x1 Metric Fine Cobalt Tap, Straw - Guhring 9024240120050
MFR# 9024240120050Series 2424
$39.29List $50.39
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
CoatingStraw
Description
The Guhring 9024240120050 is a Metric Fine Cobalt tap with a Straw finish. 3 flutes.
Specifications
ApplicationBlind Hole Threading
ChamferModified Bottoming
Class of fit6H
Coating finishStraw
Coolant throughNo
Flute directionRight Hand
Flute styleFast
Helix angle40
MaterialCobalt
Material applicationAlloy Steel; Unalloyed Steel
Number of flutes3
Overall length (mm)100.00
OversizeNo
Primary workpiece materialSteel
Shank diameter (mm)9.00
Square size (mm)7.00
Thread directionRight Hand
Thread limitD4; D5
Thread pitch (mm)1.00
Thread size (mm)M12x1
Thread standardMetric Fine
