Guhring
5/16-18 UNC Powdered Metal Tap, TICN - Guhring 9029120079380
MFR# 9029120079380Series 2912
$36.78List $47.18
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
Thread size5/16-18
CoatingTICN
Description

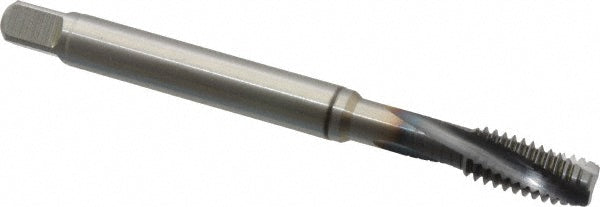

The Guhring 9029120079380 is a 5/16-18 UNC Powdered Metal tap with a TICN finish. 3 flutes.
Specifications
ApplicationBlind Hole Threading
ChamferModified Bottoming
Class of fit2BX
Coating finishTICN
Coolant throughNo
Flute directionRight Hand
Flute styleSlow
Helix angle15
MaterialPowdered Metal
Material applicationTitanium
Number of flutes3
Overall length in2-23/32
OversizeNo
Shank diameter (mm)8.00
Square size (mm)6.20
Threads per inch18
Thread directionRight Hand
Thread limitH5; H6
Thread size in5/16-18
Thread standardUNC
