Guhring

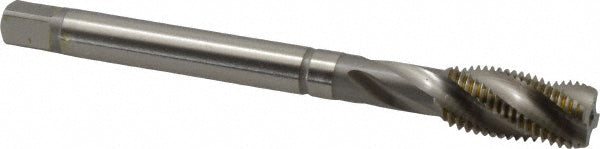

7/16-20 UNF Powdered Metal Tap, TICN - Guhring 9029140111130
MFR# 9029140111130Series 2914
$53.28List $68.33
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes4
Thread size7/16-20
CoatingTICN
Description
The Guhring 9029140111130 is a 7/16-20 UNF Powdered Metal tap with a TICN finish. 4 flutes.
Specifications
ApplicationBlind Hole Threading
ChamferModified Bottoming
Class of fit2BX
Coating finishTICN
Coolant throughNo
Flute directionRight Hand
Flute styleSlow
Helix angle15
MaterialPowdered Metal
Material applicationTitanium
Number of flutes4
Overall length in3-5/32
OversizeNo
Shank diameter (mm)8.00
Square size (mm)6.20
Threads per inch20
Thread directionRight Hand
Thread limitH5; H6
Thread size in7/16-20
Thread standardUNF
