Guhring

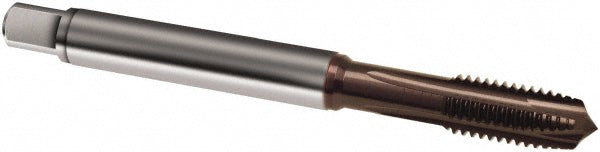

1/4-20 UNC Powdered Metal Tap, TiAlN - Guhring 9029180063500
MFR# 9029180063500Series 2918
$31.39List $40.26
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
Thread size1/4-20
CoatingTiAlN
Description
The Guhring 9029180063500 is a 1/4-20 UNC Powdered Metal tap with a TiAlN finish. 3 flutes.
Specifications
ApplicationThrough-Hole Threading
ChamferPlug
Class of fit3B
Coating finishTiAlN
Coolant throughNo
MaterialPowdered Metal
Material applicationSpecial & Super Titanium Alloy
Number of flutes3
Overall length (mm)80.00
OversizeNo
Shank diameter (mm)7.00
Threads per inch20
Thread directionRight Hand
Thread limitH3
Thread size in1/4-20
Thread standardUNC
