Guhring
7/16-20 UNF Powdered Metal Tap, TiAlN - Guhring 9029230111130
MFR# 9029230111130Series 2923
$55.92List $71.73
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes4
Thread size7/16-20
CoatingTiAlN
Description

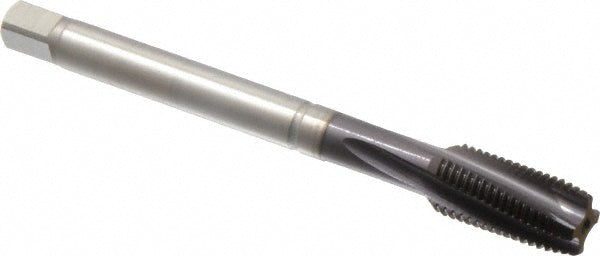

The Guhring 9029230111130 is a 7/16-20 UNF Powdered Metal tap with a TiAlN finish. 4 flutes.
Specifications
ApplicationBlind Hole Threading
ChamferModified Bottoming
Class of fit2BX
Coating finishTiAlN
Coolant throughNo
Flute directionRight Hand
Flute styleSlow
Helix angle10
MaterialPowdered Metal
Material applicationNickel
Number of flutes4
Overall length (mm)100.00
OversizeNo
Shank diameter (mm)8.00
Square size (mm)6.20
Threads per inch20
Thread directionRight Hand
Thread limitH5; H6
Thread size in7/16-20
Thread standardUNF
