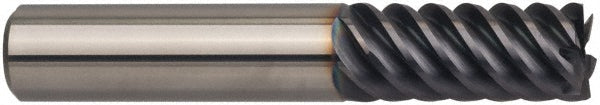

5/8" 6-Flute Solid Carbide Corner Radius End Mill, FIREX - Guhring 9030910158760

Guhring

5/8" 6-Flute Solid Carbide Corner Radius End Mill, FIREX - Guhring 9030910158760

MFR# 9030910158760Series 3091

$243.49List $312.29 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter5/8
Flutes6
MaterialSolid Carbide
CoatingFIREX

Description

The Guhring 9030910158760 is a 5/8 6-flute Solid Carbide corner radius end mill with a FIREX finish for longer tool life. Suited for steel, stainless steel, cast iron, superalloys & titanium. 1-1/4 length of cut, 3-1/2 overall length. Series 3091.

Specifications

CentercuttingNo
ChipbreakerNo
Coating finishFIREX
Coolant throughNo
Corner radius0.0620
Corner radius tolerance-0.02 to 0.02 in
Cutting directionRight Hand
End mill materialSolid Carbide
End typeCorner Radius
Extended reachNo
Flute directionRight Hand
Flute typeHelical
For use withEnd Mill Holders
Helix styleHigh
Length of cut in1-1/4
Length typeStandard
Material applicationSteel; Stainless Steel; Cast Iron; Superalloys & Titanium; Non-Ferrous Metal; Other Non-Ferrous Metal; Hard Material
Material removal typeFinishing
Mill diameter in5/8
Mill diameter toleranceh10
Number of flutes6
Overall length in3-1/2
PitchClose
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Superalloys & Titanium
Secondary workpiece materialNon-Ferrous Metal; Hard Material
Shank diameter in5/8
Shank diameter toleranceh6
Shank typeStraight-Cylindrical
Single or double endSingle
Variable helixNo
Variable indexNo
