Guhring

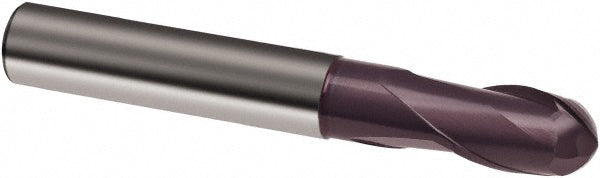

1/4" 2-Flute Solid Carbide Ball End Mill, FIREX - Guhring 9031010031700

MFR# 9031010031700Series 3101

$29.12List $37.35 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter1/4

Flutes2

MaterialSolid Carbide

CoatingFIREX

Description

The Guhring 9031010031700 is a 1/4 2-flute Solid Carbide ball end mill with a FIREX finish for longer tool life. Suited for cast iron, steel. 1/4 length of cut, 2.0000 overall length. Series 3101.

Specifications

ChipbreakerNo

Coating finishFIREX

Coolant throughNo

Cutting directionRight Hand

End mill materialSolid Carbide

Extended reachYes

Flute directionRight Hand

Helix angle30

Length of cut in1/4

Length typeLong

Mill diameter in1/4

Mill diameter toleranceh10

Neck diameter0.1130

Nose radius0.0630

Number of flutes2

Overall length2.0000

Primary workpiece materialCast Iron; Steel

Reach length in1/2

Shank diameter in1/8

Shank diameter toleranceh6

Variable helixNo

Variable indexNo
