Guhring

23/64" 2-Flute Solid Carbide Corner Radius & Corner Chamfer End Mill - Guhring 9031460091300

MFR# 9031460091300Series 3146

$58.53List $75.07 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter23/64

Flutes2

MaterialSolid Carbide

CoatingBright/Uncoated

Description

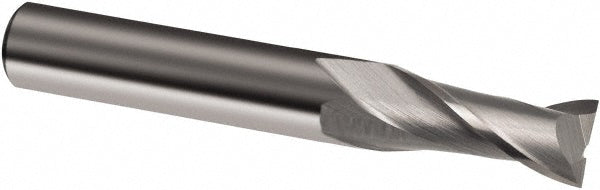

The Guhring 9031460091300 is a 23/64 2-flute Solid Carbide (Proprietary) corner radius & corner chamfer end mill. 1 length of cut, 2-1/2 overall length. Series 3146.

Specifications

CentercuttingYes

ChipbreakerNo

Coating finishBright/Uncoated

Coolant throughNo

Cutting directionRight Hand

End mill materialSolid Carbide

Extended reachNo

Flute directionRight Hand

Flute typeSpiral

Helix angle30

Length of cut in1

Length typeRegular

Material gradeProprietary

Mill diameter in23/64

Mill diameter toleranceh10

Number of flutes2

Overall length in2-1/2

Shank diameter in3/8

Shank diameter toleranceh6

Shank typeStraight-Cylindrical

Single or double endSingle

Variable helixNo

Variable indexNo
