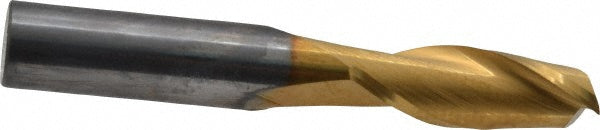

23/64" 2-Flute Solid Carbide Square End Mill, TiN - SGS 39345

SGS

23/64" 2-Flute Solid Carbide Square End Mill, TiN - SGS 39345

MFR# 39345Series 3

$47.18List $60.51 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter23/64
Flutes2
MaterialSolid Carbide
CoatingTiN

Description

The SGS 39345 is a 23/64 2-flute Solid Carbide (Micrograin) square end mill. 1 length of cut, 2-1/2 overall length. Series 3.

Specifications

CentercuttingYes
ChipbreakerNo
Coating finishTiN
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle30
Length of cut in1
Length of cut range1.0000 - 1.2500
Length typeRegular
Material gradeMicrograin
Mill diameter in23/64
Mill diameter tolerance+0.000/-0.002 in
Number of flutes2
Overall length in2-1/2
Shank diameter in3/8
Shank diameter tolerance-0.0001/-0.0004 in
Shank typeStraight-Cylindrical
Variable helixNo
Variable indexNo
