Guhring
1/16" 4-Flute Solid Carbide Corner Radius & Corner Chamfer End Mill - Guhring 9031500015900
MFR# 9031500015900Series 3150
$24.92List $31.95
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Diameter1/16
Flutes4
MaterialSolid Carbide
CoatingBright/Uncoated
Description

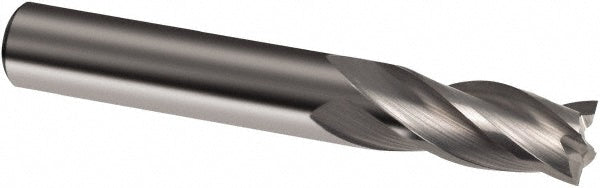

The Guhring 9031500015900 is a 1/16 4-flute Solid Carbide (Proprietary) corner radius & corner chamfer end mill. Suited for cast iron, stainless steel, steel. 3/16 length of cut, 1-1/2 overall length. Series 3150.
Specifications
CentercuttingYes
ChipbreakerNo
Coating finishBright/Uncoated
Coolant throughNo
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle30
Length of cut in3/16
Length typeRegular
Material gradeProprietary
Mill diameter in1/16
Mill diameter toleranceh10
Number of flutes4
Overall length in1-1/2
Primary workpiece materialCast Iron; Stainless Steel; Steel
Shank diameter in1/8
Shank diameter toleranceh6
Shank typeStraight-Cylindrical
Single or double endSingle
Variable helixNo
Variable indexNo
Can't find your exact tool?Send us a part number — we'll cross-reference it.
Dull tools?Regrinding extends tool life and saves cost.
Alternate & equivalent tools
Matched on diameter, flute count, and material. Need a specific brand or coating? Cross-reference this tool.
