Hertel
1/16" 4-Flute Solid Carbide Square End Mill - Hertel 12378441
MFR# 12378441Series HSQSC4-CC
$13.22List $16.96
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Diameter1/16
Flutes4
MaterialSolid Carbide
CoatingBright/Uncoated
Description

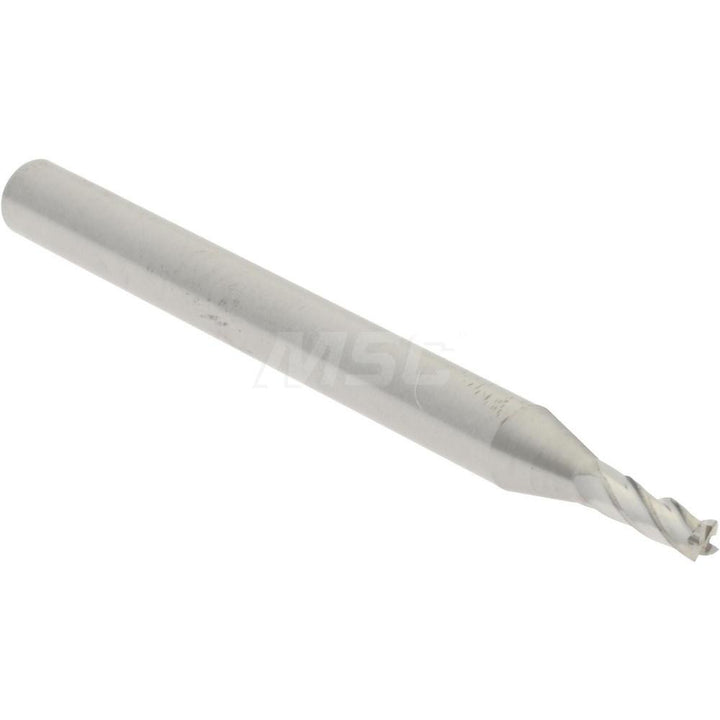

The Hertel 12378441 is a 1/16 4-flute Solid Carbide (Micrograin) square end mill. 3/16 length of cut, 1-1/2 overall length. Series HSQSC4-CC.
Specifications
CentercuttingYes
ChipbreakerNo
Coating finishBright/Uncoated
Coating finish familyBright/Uncoated
Coolant throughNo
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle30
Length of cut in3/16
Length of cut range0.1000 - 0.2000
Material gradeMicrograin
Mill diameter in1/16
Number of flutes4
Overall length in1-1/2
Shank diameter in1/8
Single or double endSingle
System of measurementFractional Inch
Variable helixNo
Variable indexNo
