Guhring

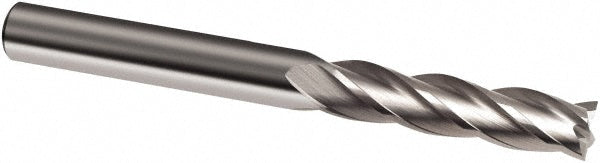

3/16" 4-Flute Solid Carbide Corner Radius & Corner Chamfer End Mill - Guhring 9031510047600

MFR# 9031510047600Series 3151

$30.58List $39.22 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter3/16

Flutes4

MaterialSolid Carbide

CoatingBright/Uncoated

Description

The Guhring 9031510047600 is a 3/16 4-flute Solid Carbide (Proprietary) corner radius & corner chamfer end mill. Suited for cast iron, stainless steel, steel. 1-1/4 length of cut, 3 overall length. Series 3151.

Specifications

CentercuttingYes

ChipbreakerNo

Coating finishBright/Uncoated

Coolant throughNo

Cutting directionRight Hand

End mill materialSolid Carbide

Extended reachNo

Flute directionRight Hand

Flute typeSpiral

Helix angle30

Length of cut in1-1/4

Length typeExtra Long

Material gradeProprietary

Maximum helix angle30

Mill diameter in3/16

Mill diameter toleranceh10

Number of flutes4

Overall length in3

Primary workpiece materialCast Iron; Stainless Steel; Steel

Shank diameter in3/16

Shank diameter toleranceh6

Shank typeStraight-Cylindrical

Single or double endSingle

Variable helixNo

Variable indexNo
