Guhring

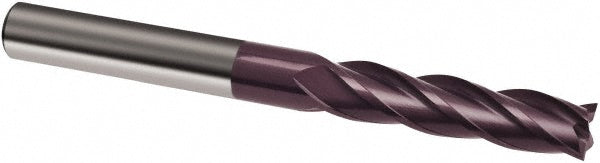

3/16" 4-Flute Solid Carbide Corner Radius & Corner Chamfer End Mill, FIREX - Guhring 9031550047600

MFR# 9031550047600Series 3155

$47.65List $61.11 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter3/16

Flutes4

MaterialSolid Carbide

CoatingFIREX

Description

The Guhring 9031550047600 is a 3/16 4-flute Solid Carbide (Proprietary) corner radius & corner chamfer end mill with a FIREX finish for longer tool life. Suited for cast iron, stainless steel, steel. 1-1/4 length of cut, 3 overall length. Series 3155.

Specifications

CentercuttingYes

ChipbreakerNo

Coating finishFIREX

Coolant throughNo

Cutting directionRight Hand

End mill materialSolid Carbide

Extended reachNo

Flute directionRight Hand

Flute typeSpiral

Helix angle30

Length of cut in1-1/4

Length typeExtra Long

Material gradeProprietary

Mill diameter in3/16

Mill diameter toleranceh10

Number of flutes4

Overall length in3

Primary workpiece materialCast Iron; Stainless Steel; Steel

Shank diameter in3/16

Shank diameter toleranceh6

Shank typeStraight-Cylindrical

Single or double endSingle

Variable helixNo

Variable indexNo
