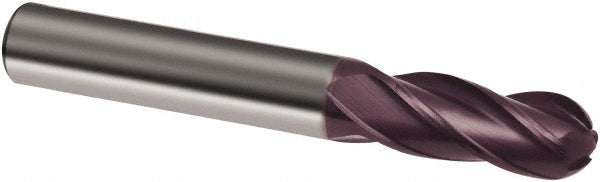

9/64" 4-Flute Solid Carbide Ball End Mill, FIREX - Guhring 9031650035700

Guhring

9/64" 4-Flute Solid Carbide Ball End Mill, FIREX - Guhring 9031650035700

MFR# 9031650035700Series 3165

$36.48List $46.78 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter9/64
Flutes4
MaterialSolid Carbide
CoatingFIREX

Description

The Guhring 9031650035700 is a 9/64 4-flute Solid Carbide (Ultra Fine Grain) ball end mill with a FIREX finish for longer tool life. 5/8 length of cut, 2 overall length. Series 3165.

Specifications

ChipbreakerNo
Coating finishFIREX
Coolant throughNo
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle30
Length of cut in5/8
Length typeRegular
Material gradeUltra Fine Grain
Mill diameter in9/64
Mill diameter toleranceh10
Number of flutes4
Overall length in2
Shank diameter in9/64
Shank diameter toleranceh6
Single or double endSingle
Variable helixNo
Variable indexNo
Can't find your exact tool?Send us a part number — we'll cross-reference it. Dull tools?Regrinding extends tool life and saves cost.

Alternate & equivalent tools

Matched on diameter, flute count, and material. Need a specific brand or coating? Cross-reference this tool.

Hertel9/64" 4-Flute Solid Carbide Ball End Mill - Hertel E599924518 $15.66 SGS9/64" 4-Flute Solid Carbide Ball End Mill, AlTiN - SGS 31225 $37.90 SGS9/64" 4-Flute Solid Carbide Ball End Mill, TiCN - SGS 39018 $26.81 SGS9/64" 4-Flute Solid Carbide Ball End Mill, TiN - SGS 31456 $37.90
