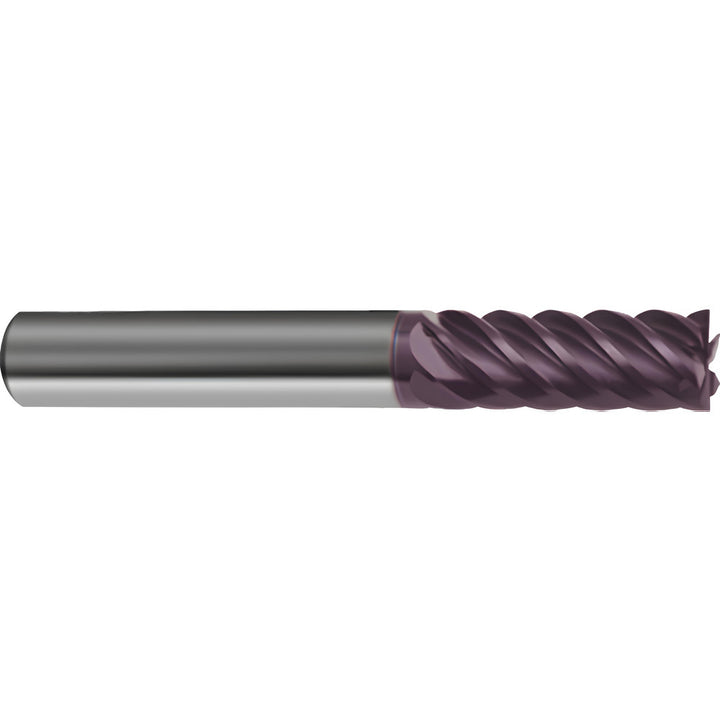

3/8" 6-Flute Solid Carbide Corner Radius & Corner Chamfer End Mill, TiAlN - Guhring 9031790095200

MFR# 9031790095200Series 3179

$60.79List $77.97 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter3/8

Flutes6

MaterialSolid Carbide

CoatingTiAlN

Description

The Guhring 9031790095200 is a 3/8 6-flute Solid Carbide (K40) corner radius & corner chamfer end mill with a TiAlN; TiN finish for longer tool life. Suited for steel, stainless steel, cast iron, superalloys & titanium. 7/8 length of cut, 2-1/2 overall length. Series 3179.

Specifications

Additional informationShouldering; Slotting; Rampdown; Helical Interpolation; Drill Mill; Plunging & Recessing

CentercuttingYes

Chamfer angle45

Chamfer length0.0040

Chamfer width0.0040

ChipbreakerNo

Coating finishTiAlN

Coolant throughNo

Cutting directionRight Hand

End mill materialSolid Carbide

Extended reachNo

Flute directionRight Hand

Flute typeHelical

Helix angle45

Helix styleHigh

Length of cut in7/8

Length typeRegular

Manufacturers catalog number9031790095200

Material gradeK40

Material removal typeFinishing

Mill diameter in3/8

Mill diameter toleranceh10

Number of flutes6

Overall length in2-1/2

PitchClose

Primary workpiece materialSteel; Stainless Steel; Cast Iron; Superalloys & Titanium

Reach length in7/8

Secondary workpiece materialNon-Ferrous Metal; Hard Material

Shank diameter in3/8

Shank diameter toleranceh6

Shank typeStraight-Cylindrical

Single or double endSingle

Variable helixNo

Variable indexNo
