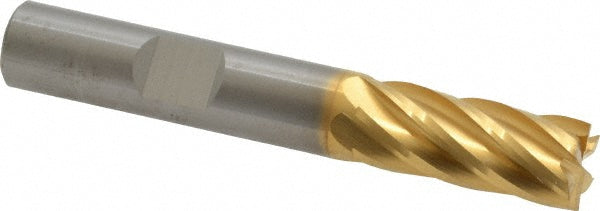

3/8" 6-Flute Solid Carbide Square End Mill, TiN - RobbJack ST-630-12-T

RobbJack

3/8" 6-Flute Solid Carbide Square End Mill, TiN - RobbJack ST-630-12-T

MFR# ST-630-12-TSeries ST-630

$97.62List $106.65 Save 8%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter3/8
Flutes6
MaterialSolid Carbide
CoatingTiN

Description

The RobbJack ST-630-12-T is a 3/8 6-flute Solid Carbide square end mill. 7/8 length of cut, 2-1/2 overall length. Series ST-630.

Specifications

CentercuttingYes
ChipbreakerNo
Coating finishTiN
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle30
Length of cut in7/8
Length typeRegular
Mill diameter in3/8
Mill diameter tolerance+0.001/-0.000 in
Number of flutes6
Overall length in2-1/2
Overall length tolerance+0.060/-0.060 in
Shank diameter in3/8
Shank diameter tolerance-0.0001/-0.0002 in
Variable helixNo
Variable indexNo
