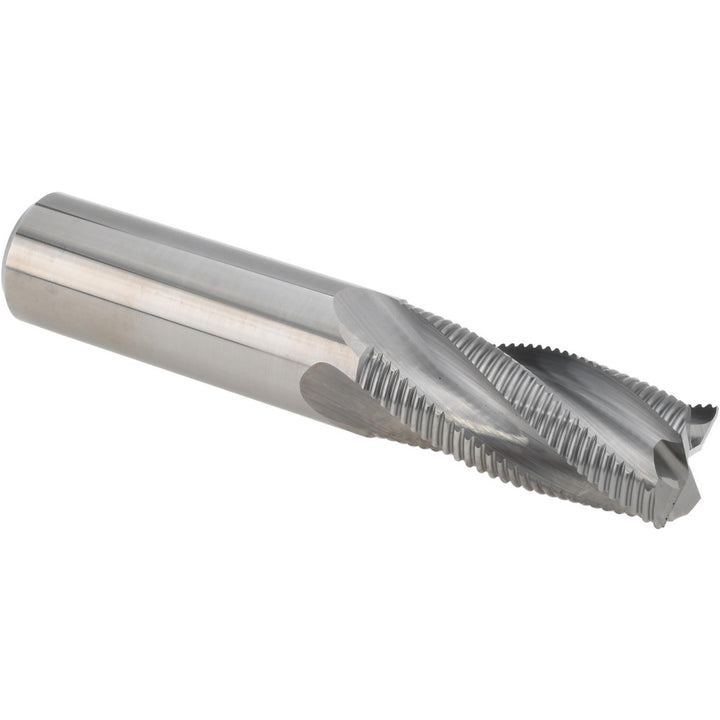

0.75" 4-Flute Solid Carbide Roughing End Mill - Guhring 9031860190500

Guhring

0.75" 4-Flute Solid Carbide Roughing End Mill - Guhring 9031860190500

MFR# 9031860190500Series 3186

$174.64List $223.98 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes4
MaterialSolid Carbide
CoatingBright/Uncoated

Description

The Guhring 9031860190500 is a 0.75 4-flute Solid Carbide (Ultra Fine Grain) roughing end mill. Series 3186.

Specifications

CentercuttingNo
Chamfer angle45
Chamfer width0.0200
ChipbreakerNo
Coating finishBright/Uncoated
Coolant throughNo
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Length of cut1.6250
Length typeRegular
Material gradeUltra Fine Grain
Maximum helix angle30
Mill diameter0.75
Mill diameter frac in3/4
Number of flutes4
PitchFine
Shank diameter in3/4
Shank diameter toleranceh6
Shank typeStraight-Cylindrical
Single or double endSingle
Can't find your exact tool?Send us a part number — we'll cross-reference it. Dull tools?Regrinding extends tool life and saves cost.

Alternate & equivalent tools

Matched on diameter, flute count, and material. Need a specific brand or coating? Cross-reference this tool.

Seco0.7500" 4-Flute Cobalt Roughing End Mill, TiCN - Seco 17013498 $97.46 Cleveland3/4" 4-Flute High Speed Steel Square End Mill - Cleveland C33169 $91.16 Hertel0.75" 4-Flute Cobalt Roughing End Mill, TiAlN - Hertel 91192658 $72.05 Titan USA0.75" 4-Flute Solid Carbide Square End Mill, AlTiN - Titan USA TC29548 $290.92
