Guhring

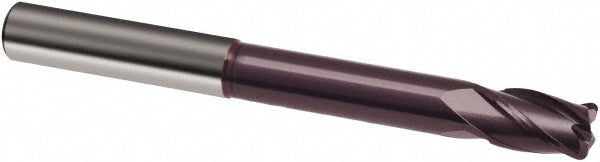

1/4" 4-Flute Solid Carbide Single End Mill, FIREX - Guhring 9031920063500

MFR# 9031920063500Series 3192

$52.00List $66.70 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter1/4

Flutes4

MaterialSolid Carbide

CoatingFIREX

Description

The Guhring 9031920063500 is a 1/4 4-flute Solid Carbide (Proprietary) single end mill with a FIREX finish for longer tool life. Suited for cast iron, hard material, steel. 1/4 length of cut, 3 overall length. Series 3192.

Specifications

CentercuttingYes

ChipbreakerNo

Coating finishFIREX

Cutting directionRight Hand

End mill materialSolid Carbide

End typeSingle

Extended reachNo

Flute directionRight Hand

Flute typeSpiral

Helix angle30

Length of cut in1/4

Length typeLong

Material gradeProprietary

Maximum helix angle30

Mill diameter in1/4

Mill diameter toleranceh10

Number of flutes4

Overall length in3

Primary workpiece materialCast Iron; Hard Material; Steel

Reach length1.5000

Shank diameter in1/4

Shank diameter toleranceh6

Shank typeStraight-Cylindrical

Variable helixNo

Variable indexNo
