Guhring

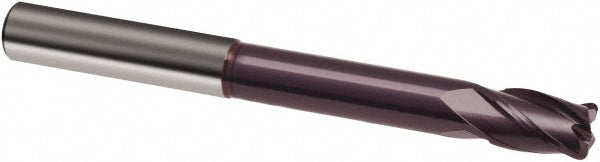

5/16" 4-Flute Solid Carbide Single End Mill, FIREX - Guhring 9031920079400

MFR# 9031920079400Series 3192

$68.87List $88.33 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter5/16

Flutes4

MaterialSolid Carbide

CoatingFIREX

Description

The Guhring 9031920079400 is a 5/16 4-flute Solid Carbide (Proprietary) single end mill with a FIREX finish for longer tool life. Suited for cast iron, hard material, steel. 5/16 length of cut, 3 overall length. Series 3192.

Specifications

CentercuttingYes

ChipbreakerNo

Coating finishFIREX

Cutting directionRight Hand

End mill materialSolid Carbide

End typeSingle

Extended reachNo

Flute directionRight Hand

Flute typeSpiral

Helix angle30

Length of cut in5/16

Length typeLong

Material gradeProprietary

Mill diameter in5/16

Mill diameter toleranceh10

Number of flutes4

Overall length in3

Primary workpiece materialCast Iron; Hard Material; Steel

Reach length1.5000

Shank diameter in5/16

Shank diameter toleranceh6

Shank typeStraight-Cylindrical

Variable helixNo

Variable indexNo

Can't find your exact tool?Send us a part number — we'll cross-reference it. Dull tools?Regrinding extends tool life and saves cost.

Alternate & equivalent tools

Matched on diameter, flute count, and material. Need a specific brand or coating? Cross-reference this tool.
