Guhring

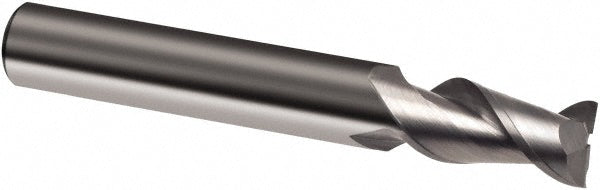

0.2362" 2-Flute Solid Carbide Corner Radius & Corner Chamfer End Mill - Guhring 9033090060000
MFR# 9033090060000Series 3309
$44.83List $57.50
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
MaterialSolid Carbide
Description
The Guhring 9033090060000 is a 0.2362 2-flute Solid Carbide (Proprietary) corner radius & corner chamfer end mill. Series 3309.
Specifications
CentercuttingYes
ChipbreakerNo
Coolant throughNo
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle45
Length of cut0.3937
Length typeRegular
Material gradeProprietary
Mill diameter0.2362
Mill diameter tolerancee8
Number of flutes2
Overall length (mm)57.00
Reach length (mm)21.00
Shank diameter0.2362
Shank diameter toleranceh6
Shank typeStraight-Cylindrical
Single or double endSingle
Variable helixNo
Variable indexNo
