Guhring

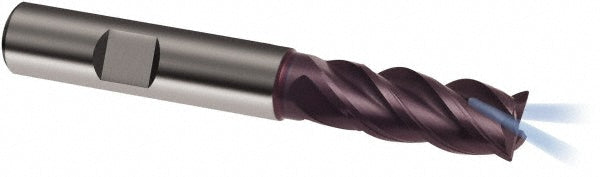

0.2362" 4-Flute Solid Carbide Corner Radius & Corner Chamfer End Mill, FIREX - Guhring 9033660060000

MFR# 9033660060000Series 3366

$105.87List $135.78 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Flutes4

MaterialSolid Carbide

CoatingFIREX

Description

The Guhring 9033660060000 is a 0.2362 4-flute Solid Carbide (Proprietary) corner radius & corner chamfer end mill with a FIREX finish for longer tool life. Series 3366.

Specifications

CentercuttingYes

ChipbreakerNo

Coating finishFIREX

Cutting directionRight Hand

End mill materialSolid Carbide

Extended reachNo

Flute directionRight Hand

Flute typeSpiral

Helix angle40; 42

Length of cut0.5118

Length typeRegular

Material gradeProprietary

Mill diameter0.2362

Number of flutes4

Overall length (mm)57.00

Shank diameter0.2362

Single or double endSingle

Variable helixYes

Variable indexNo
