Guhring

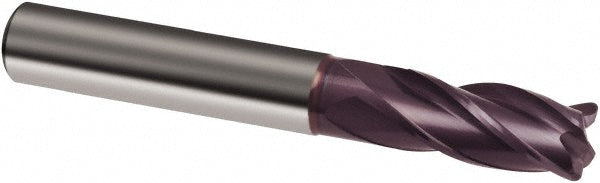

0.2362" 4-Flute Solid Carbide Single End Mill, FIREX - Guhring 9035620060050

MFR# 9035620060050Series 3562

$70.04List $89.83 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Flutes4

MaterialSolid Carbide

CoatingFIREX

Description

The Guhring 9035620060050 is a 0.2362 4-flute Solid Carbide (Proprietary) single end mill with a FIREX finish for longer tool life. Suited for cast iron, stainless steel, steel. Series 3562.

Specifications

CentercuttingYes

ChipbreakerNo

Coating finishFIREX

Cutting directionRight Hand

End mill materialSolid Carbide

End typeSingle

Extended reachYes

Flute directionRight Hand

Flute typeSpiral

Helix angle30

Length of cut0.5118

Length typeStandard

Material gradeProprietary

Mill diameter0.2362

Mill diameter toleranceh10

Neck diameter (mm)5.70

Number of flutes4

Primary workpiece materialCast Iron; Stainless Steel; Steel

Reach length (mm)21.00

Shank diameter0.2362

Shank diameter toleranceh6

Shank typeStraight-Cylindrical

Variable helixNo

Variable indexNo

Can't find your exact tool?Send us a part number — we'll cross-reference it. Dull tools?Regrinding extends tool life and saves cost.

Alternate & equivalent tools

Matched on diameter, flute count, and material. Need a specific brand or coating? Cross-reference this tool.
