Guhring

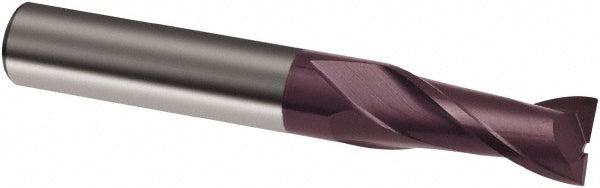

0.1181" 2-Flute Solid Carbide Corner Radius & Corner Chamfer End Mill, FIREX - Guhring 9036760030000
MFR# 9036760030000Series 3676
$27.83List $35.70
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
MaterialSolid Carbide
CoatingFIREX
Description
The Guhring 9036760030000 is a 0.1181 2-flute Solid Carbide (Proprietary) corner radius & corner chamfer end mill with a FIREX finish for longer tool life. Series 3676.
Specifications
CentercuttingNo
ChipbreakerNo
Coating finishFIREX
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle30
Length of cut0.2756
Length typeRegular
Material gradeProprietary
Mill diameter0.1181
Number of flutes2
Overall length (mm)38.00
Shank diameter0.1181
Single or double endSingle
Variable helixNo
Variable indexNo
