Guhring

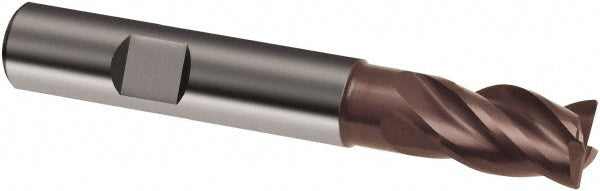

0.2362" 4-Flute Solid Carbide Corner Radius & Corner Chamfer End Mill, nano-A - Guhring 9038050060000

MFR# 9038050060000Series 3805

$55.10List $70.66 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Flutes4

MaterialSolid Carbide

Coatingnano-A

Description

The Guhring 9038050060000 is a 0.2362 4-flute Solid Carbide (Proprietary) corner radius & corner chamfer end mill with a nano-A finish for longer tool life. Series 3805.

Specifications

CentercuttingYes

ChipbreakerNo

Coating finishnano-A

Cutting directionRight Hand

End mill materialSolid Carbide

Extended reachYes

Flute directionRight Hand

Flute typeSpiral

Helix angle36; 38

Length of cut0.3937

Length typeStub

Material gradeProprietary

Mill diameter0.2362

Number of flutes4

Overall length (mm)54.00

Reach length (mm)18.00

Shank diameter0.2362

Single or double endSingle

Variable helixYes

Variable indexNo

Can't find your exact tool?Send us a part number — we'll cross-reference it. Dull tools?Regrinding extends tool life and saves cost.

Alternate & equivalent tools

Matched on diameter, flute count, and material. Need a specific brand or coating? Cross-reference this tool.
