Seco

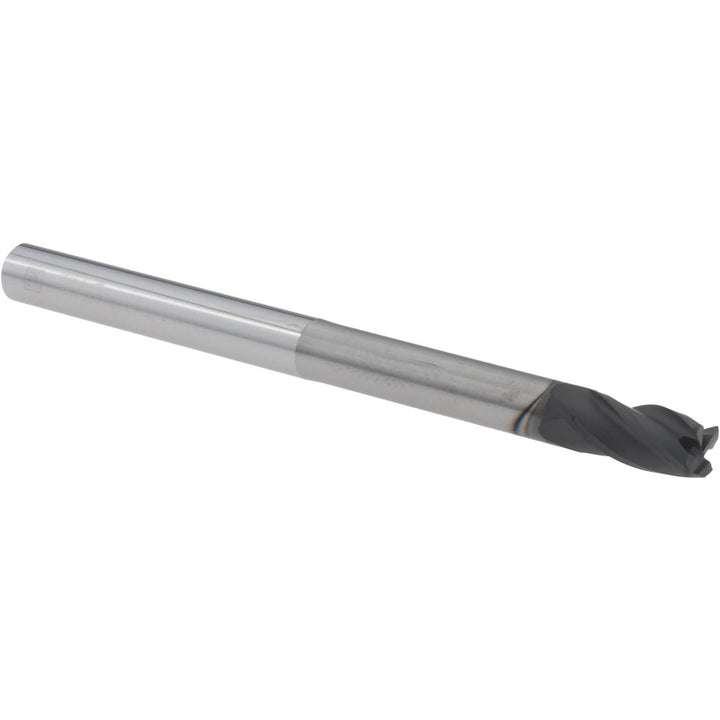

0.2362" 4-Flute Solid Carbide Corner Radius End Mill, Diamond - Seco 00023479
MFR# 00023479Series JD640
$249.21List $308.88
Save 19%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes4
MaterialSolid Carbide
CoatingDiamond
Description
The Seco 00023479 is a 0.2362 4-flute Solid Carbide corner radius end mill with a Diamond finish for longer tool life. Series JD640.
Specifications
CentercuttingYes
ChipbreakerNo
Coating finishDiamond
Coolant throughNo
Corner radius0.0197
Corner radius tolerance+0.05000 to -0.05000 mm
Cutting directionRight Hand
End mill materialSolid Carbide
End typeCorner Radius
Extended reachYes
Flute directionRight Hand
Flute typeSpiral
Helix styleMedium
Length of cut0.3937
Length typeRegular
Material removal typeRoughing
Mill diameter0.2362
Mill diameter tolerance-0.02/-0.04 mm
Neck diameter0.2320
Number of flutes4
Overall length (mm)80.00
Reach length1.5748
Shank diameter (mm)6
Shank diameter toleranceh5
Shank typeStraight-Cylindrical
Single or double endSingle
Tir maximum0.0004
Variable helixNo
Variable indexNo
