Guhring

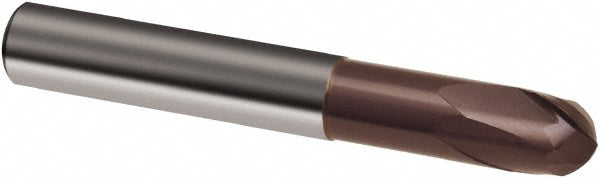

0.3150" 2-Flute Solid Carbide Ball End Mill, TiAlN - Guhring 9038480080000
MFR# 9038480080000Series 3848
$109.17List $140.01
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
MaterialSolid Carbide
CoatingTiAlN
Description
The Guhring 9038480080000 is a 0.3150 2-flute Solid Carbide (Proprietary) ball end mill with a TiAlN finish for longer tool life. Series 3848.
Specifications
ChipbreakerNo
Coating finishTiAlN
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle30
Length of cut (mm)7.00
Length typeRegular
Material gradeProprietary
Mill diameter0.3150
Mill diameter toleranceh8
Neck diameter (mm)7.6
Number of flutes2
Overall length (mm)63.00
Reach length (mm)25.00
Shank diameter0.315
Shank diameter toleranceh6
Shank typeStraight-Cylindrical
Variable helixNo
Variable indexNo
