Guhring

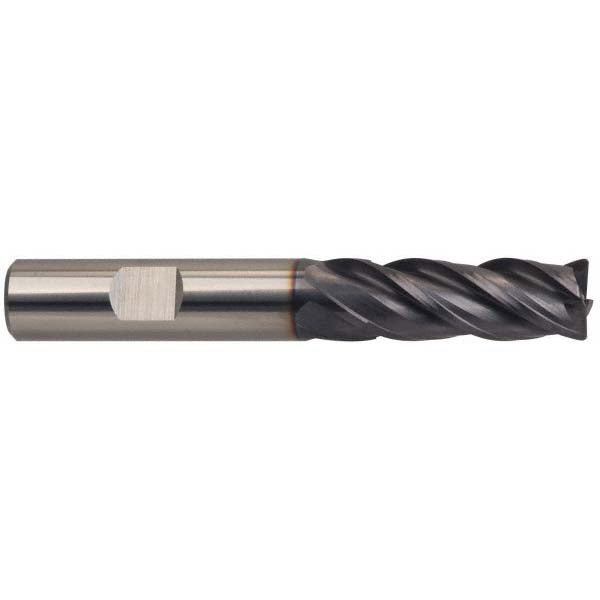

0.3940" 4-Flute Solid Carbide Corner Radius & Corner Chamfer End Mill, FIREX - Guhring 9038710100000

MFR# 9038710100000Series 3871

$107.36List $137.70 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Flutes4

MaterialSolid Carbide

CoatingFIREX

Description

The Guhring 9038710100000 is a 0.3940 4-flute Solid Carbide (Proprietary) corner radius & corner chamfer end mill with a FIREX finish for longer tool life. Series 3871.

Specifications

CentercuttingYes

ChipbreakerNo

Coating finishFIREX

Cutting directionRight Hand

End mill materialSolid Carbide

Extended reachNo

Flute directionRight Hand

Flute typeSpiral

Helix angle35; 38

Length of cut1.1810

Length typeLong

Material gradeProprietary

Mill diameter0.3940

Number of flutes4

Overall length (mm)80.00

Shank diameter0.3937

Shank typeWeldon Flat

Single or double endSingle

Variable helixYes

Variable indexNo
