0.3940" 4-Flute High Speed Steel Square End Mill - Dormer Pramet 5984245

Dormer Pramet

0.3940" 4-Flute High Speed Steel Square End Mill - Dormer Pramet 5984245

MFR# 5984245Series C247

$44.91List $57.60 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes4
MaterialHigh Speed Steel
CoatingBright/Uncoated

Description

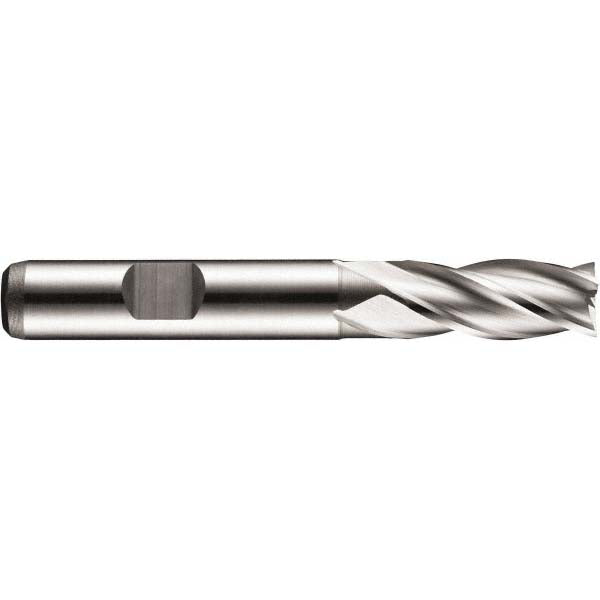

The Dormer Pramet 5984245 is a 0.3940 4-flute High Speed Steel square end mill. 0.8668 length of cut. Series C247.

Specifications

CentercuttingYes
ChipbreakerNo
Coating finishBright/Uncoated
Cutting directionRight Hand
End mill materialHigh Speed Steel
End typeSquare
Extended reachYes
Flute directionRight Hand
Helix angle30
Length of cut0.8668
Length typeRegular
Maximum helix angle30
Mill diameter0.3940
Mill diameter tolerance+0.058/0.000 mm
Number of flutes4
Shank diameter (mm)10.00
Shank typeWeldon Flat
Single or double endSingle
