1" 4-Flute Solid Carbide Corner Radius End Mill, Super A - Guhring 9038760254090

Guhring

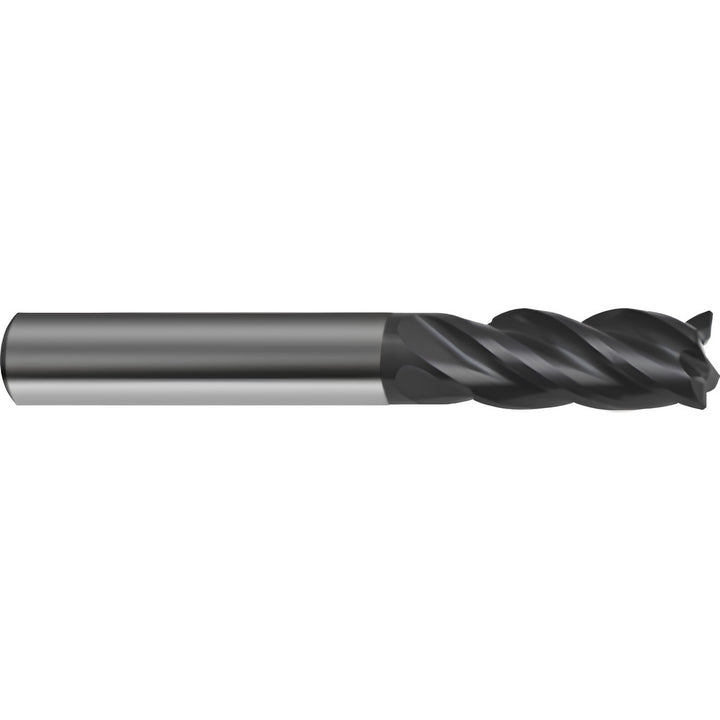

1" 4-Flute Solid Carbide Corner Radius End Mill, Super A - Guhring 9038760254090

MFR# 9038760254090Series 3876

$631.14List $809.47 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter1
Flutes4
MaterialSolid Carbide
CoatingSuper A

Description

The Guhring 9038760254090 is a 1 4-flute Solid Carbide corner radius end mill with a Super A finish for longer tool life. Suited for steel, cast iron, superalloys & titanium. 1-1/2 length of cut, 4 overall length. Series 3876.

Specifications

CentercuttingNo
ChipbreakerNo
Coating finishSuper A
Coolant throughNo
Corner radius in1/8
Corner radius tolerance-0.05 to 0.05 in
Cutting directionRight Hand
End mill materialSolid Carbide
End typeCorner Radius
Extended reachNo
Flute directionRight Hand
Flute typeHelical
For use withEnd Mill Holders
Helix styleVariable
Length of cut in1-1/2
Length typeStandard
Material applicationSteel; Cast Iron; Superalloys & Titanium; Stainless Steel; Hard Material
Material removal typeRoughing & Finishing
Mill diameter in1
Mill diameter toleranceh10
Number of flutes4
Overall length in4
PitchNormal
Primary workpiece materialSteel; Cast Iron; Superalloys & Titanium
Secondary workpiece materialStainless Steel; Hard Material
Shank diameter in1
Shank diameter toleranceh6
Shank typeWeldon Flat
Single or double endSingle
Variable helixYes
Variable indexYes
