Guhring

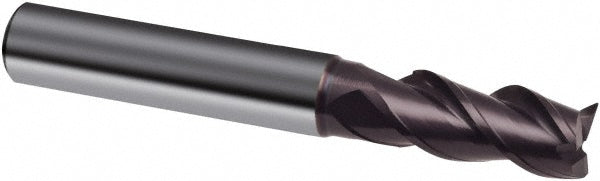

0.2362" 3-Flute Solid Carbide Corner Radius & Corner Chamfer End Mill, FIREX - Guhring 9038910060000

MFR# 9038910060000Series 3891

$43.30List $55.53 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Flutes3

MaterialSolid Carbide

CoatingFIREX

Description

The Guhring 9038910060000 is a 0.2362 3-flute Solid Carbide (Proprietary) corner radius & corner chamfer end mill with a FIREX finish for longer tool life. Suited for stainless steel, steel. Series 3891.

Specifications

CentercuttingYes

ChipbreakerNo

Coating finishFIREX

Coolant throughNo

Cutting directionRight Hand

End mill materialSolid Carbide

Extended reachYes

Flute directionRight Hand

Flute typeSpiral

Helix angle41; 43; 45

Length of cut0.5118

Length typeRegular

Material gradeProprietary

Mill diameter0.2362

Mill diameter tolerancee8

Neck diameter (mm)5.70

Number of flutes3

Overall length (mm)57.00

Primary workpiece materialStainless Steel; Steel

Reach length (mm)21.00

Secondary workpiece materialCast Iron

Shank diameter0.2362

Shank diameter toleranceh6

Shank typeStraight-Cylindrical

Single or double endSingle

Variable helixYes

Variable indexNo
