0.2362" 3-Flute Solid Carbide Square End Mill - SGS 44701

SGS

0.2362" 3-Flute Solid Carbide Square End Mill - SGS 44701

MFR# 44701Series 43M

$32.92List $42.22 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes3
MaterialSolid Carbide
CoatingBright/Uncoated

Description

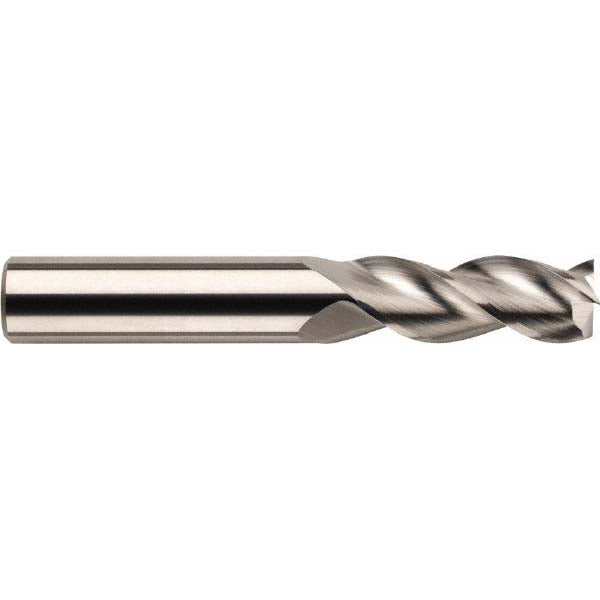

The SGS 44701 is a 0.2362 3-flute Solid Carbide (Micrograin) square end mill. Suited for non-ferrous metal. 0.5118 length of cut. Series 43M.

Specifications

CentercuttingYes
ChipbreakerNo
Coating finishBright/Uncoated
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle38
Length of cut0.5118
Length of cut range0.5000 - 0.6000
Length typeRegular
Material gradeMicrograin
Mill diameter0.2362
Mill diameter tolerance+0.000/-0.008 mm
Number of flutes3
Overall length (mm)57
Primary workpiece materialNon-Ferrous Metal
Shank diameter0.2362
Shank diameter tolerance+0.000/-0.008 mm
Shank typeStraight-Cylindrical
Variable helixNo
Variable indexNo
Can't find your exact tool?Send us a part number — we'll cross-reference it. Dull tools?Regrinding extends tool life and saves cost.
