Guhring

0.3150" 4-Flute Solid Carbide Corner Radius & Corner Chamfer End Mill, TiAlN - Guhring 9038950080000

MFR# 9038950080000Series 3895

$80.40List $103.11 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Flutes4

MaterialSolid Carbide

CoatingTiAlN

Description

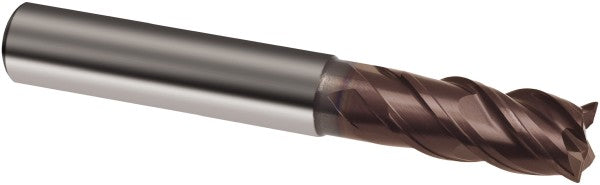

The Guhring 9038950080000 is a 0.3150 4-flute Solid Carbide (Proprietary) corner radius & corner chamfer end mill with a TiAlN finish for longer tool life. Suited for cast iron, hard material. Series 3895.

Specifications

CentercuttingYes

ChipbreakerNo

Coating finishTiAlN

Coolant throughNo

Cutting directionRight Hand

End mill materialSolid Carbide

Extended reachYes

Flute directionRight Hand

Flute typeSpiral

Helix angle40; 42

Length of cut0.7480

Length typeRegular

Material gradeProprietary

Mill diameter0.3150

Mill diameter toleranceh10

Neck diameter (mm)7.70

Number of flutes4

Overall length (mm)63.00

Primary workpiece materialCast Iron; Hard Material

Reach length (mm)27.00

Secondary workpiece materialSteel

Shank diameter0.3150

Shank diameter toleranceh6

Shank typeStraight-Cylindrical

Single or double endSingle

Variable helixYes

Variable indexNo
