0.3150" 4-Flute Solid Carbide Single End Mill, TiAlN - Sandvik Coromant 5743100

Sandvik Coromant

0.3150" 4-Flute Solid Carbide Single End Mill, TiAlN - Sandvik Coromant 5743100

MFR# 5743100Series CoroMill Plura

$166.73List $213.84 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes4
MaterialSolid Carbide
CoatingTiAlN

Description

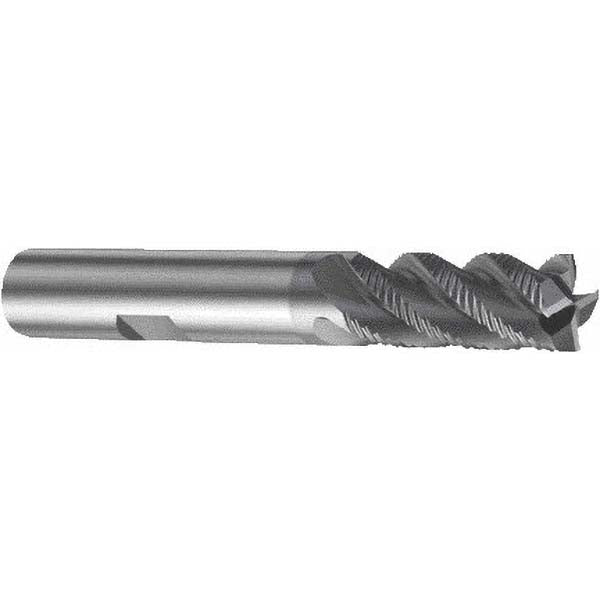

The Sandvik Coromant 5743100 is a 0.3150 4-flute Solid Carbide (1640) single end mill with a TiAlN finish for longer tool life. Series CoroMill Plura.

Specifications

CentercuttingYes
ChipbreakerYes
Coating finishTiAlN
Cutting directionRight Hand
End mill materialSolid Carbide
End typeSingle
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle40
Length of cut0.7480
Length typeLong
Material grade1640
Maximum helix angle40
Mill diameter0.3150
Mill diameter toleranceh12
Number of flutes4
Shank diameter0.3150
Shank diameter toleranceh6
Variable helixNo
Variable indexNo
