Guhring

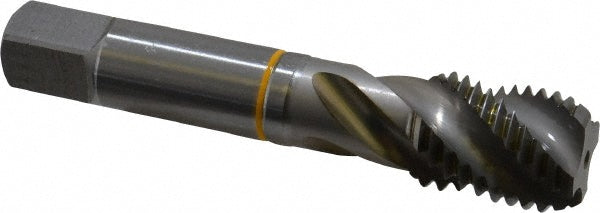

#1-8 UNC Cobalt Tap - Guhring 9039040254000
MFR# 9039040254000Series 3904
$137.81List $176.76
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes4
Thread size#1-8
Description
The Guhring 9039040254000 is a #1-8 UNC Cobalt tap. 4 flutes.
Specifications
ApplicationBlind Hole Threading
ChamferModified Bottoming
Class of fit2B
Coolant throughNo
Flute directionRight Hand
Flute styleFast
Helix angle40
MaterialCobalt
Material applicationAluminum & Other Non-Ferrous Metal; Gray Cast Iron; Malleable & Spheroidal Iron; Steel
Number of flutes4
Overall length in5-1/8
OversizeNo
Shank diameter0.8000
Square size0.6000
Threads per inch8
Thread directionRight Hand
Thread size in#1-8
Thread standardUNC
