Guhring

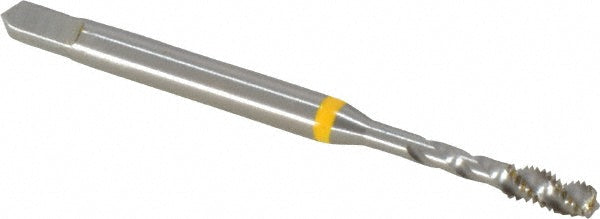

#4-48 UNF Cobalt Tap - Guhring 9039050028450
MFR# 9039050028450Series 3905
$26.70List $34.24
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
Thread size#4-48
Description
The Guhring 9039050028450 is a #4-48 UNF Cobalt tap. 3 flutes.
Specifications
ApplicationBlind Hole Threading
ChamferModified Bottoming
Class of fit2B
Coolant throughNo
Flute directionRight Hand
Flute styleFast
Helix angle40
MaterialCobalt
Material applicationAluminum & Other Non-Ferrous Metal; Gray Cast Iron; Malleable & Spheroidal Iron; Steel
Neck length0.7090
Number of flutes3
Overall length in1-7/8
OversizeNo
Shank diameter0.1410
Square size0.1100
Threads per inch48
Thread directionRight Hand
Thread size in#4-48
Thread standardUNF
