Guhring
#12-28 UNF Cobalt Tap - Guhring 9039050054860
MFR# 9039050054860Series 3905
$21.71List $27.84
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
Thread size#12-28
Description

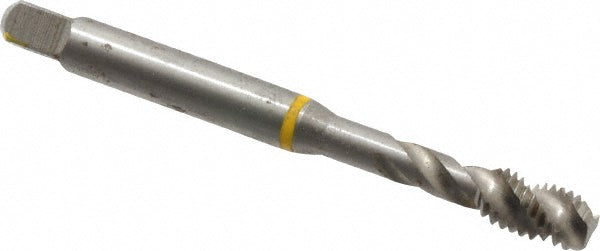

The Guhring 9039050054860 is a #12-28 UNF Cobalt tap. 3 flutes.
Specifications
ApplicationBlind Hole Threading
ChamferModified Bottoming
Class of fit2B
Coolant throughNo
Flute directionRight Hand
Flute styleFast
Helix angle40
MaterialCobalt
Material applicationAluminum & Other Non-Ferrous Metal; Gray Cast Iron; Malleable & Spheroidal Iron; Steel
Neck length1.0240
Number of flutes3
Overall length2.3820
OversizeNo
Shank diameter0.2200
Square size0.1650
Threads per inch28
Thread directionRight Hand
Thread size in#12-28
Thread standardUNF
